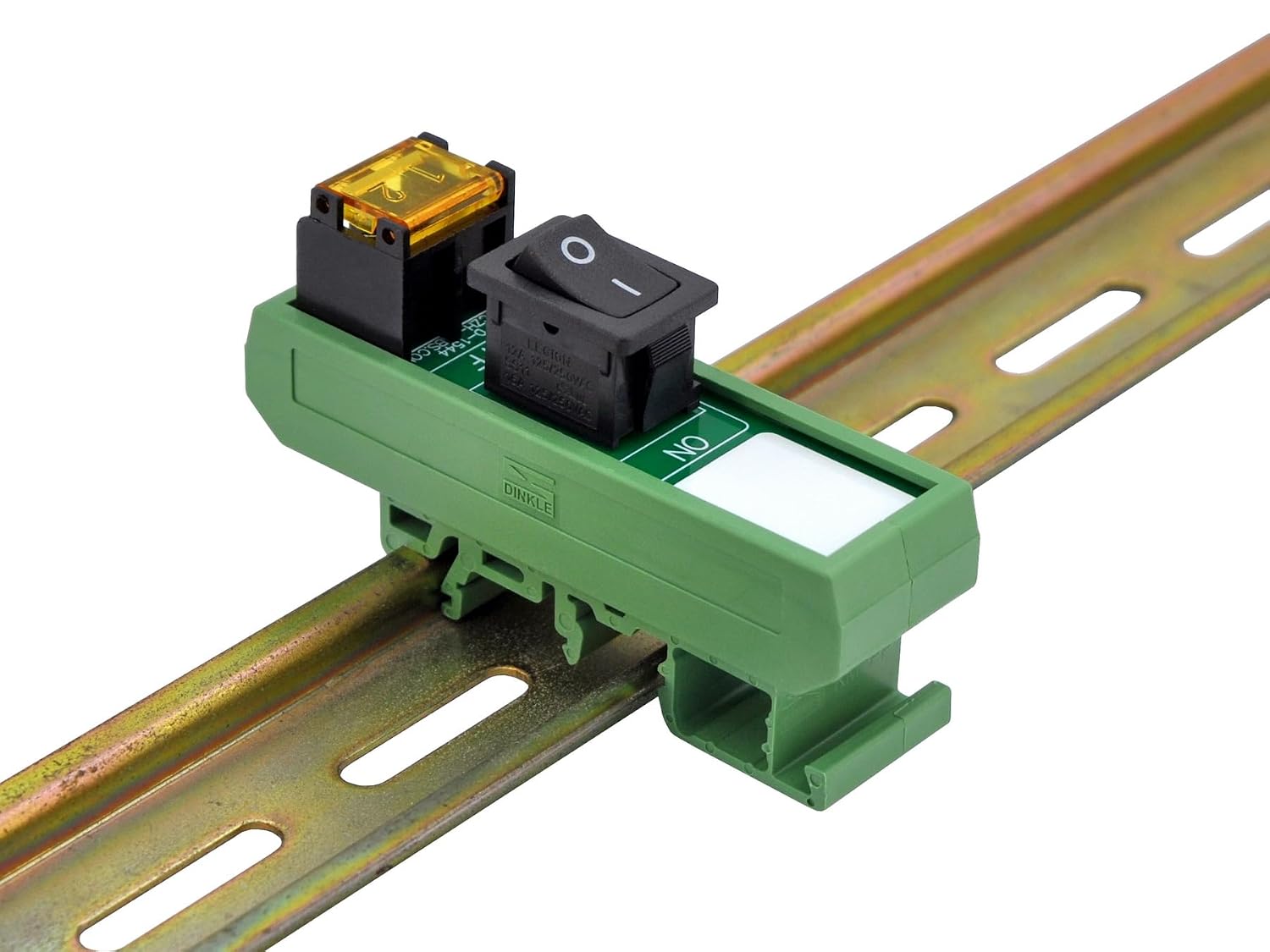

DIN Rail Mount Rocker Switch Module, 10Amp 250VAC/50VDC (1 Channel)
Product details
| Management number | 247506124 | Release Date | 2026/08/16 | List Price | US$7.20 | Model Number | 247506124 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Rated voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel). 2, ON-OFF rocker switch. 3, Terminals pitch 7.62mm/0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters. 4, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. 5, UL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal blocks.
- Rated voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel).
- ON-OFF rocker switch.
- Terminals pitch 7.62mm/0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters.
- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
- UL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal blocks.
| ASIN | B0DDJG6L1D |
|---|---|
| Wattage | 2500 watts |
| Terminal | Screw |
| Brand Name | OONO |
| Unit Count | 1 Count |
| Part Number | D-1544T Series |
| Switch Type | Rocker |
| Circuit Type | 1-way |
| Contact Type | Spst |
| Control Type | ON-OFF |
| Manufacturer | CZH-LABS |
| Actuator Type | Rocker |
| Material Type | Nylon |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Control Method | Touch |
| Current Rating | 10 A |
| Operation Mode | ON-OFF |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 250 volts_of_alternating_current |
| Specification Met | True |
| Included Components | fork connectors |
| Upper Temperature Rating | 85 °C |
